ASUS A7V-E
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speed
200MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM types
VCM SDR UDIMMSDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
cardExpansion slots
6x
32-bit PCI
1x
Universal AGP
wrench Known issues
  • Asus PS/2 capacitor network shorting

The C151 capacitor network (located next to the PS/2 ports) can potentially get shorted, causing the keyboard and mouse to not work, more info here and here.

notes Notes

Optional ALC200 and/or Realtek RTL8139C controllers.

Last updated 2026-02-18T12:48:54Z
Board info score is 9.4/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/10/2002-VIA-KT133-<A7V-E>
Note
beta
Core version
Asus v6.0
BIOS version
Logs
POST string
01/11/2002-VIA-KT133-<A7V-E>
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
03/08/2001-VIA-KT133-<A7V-E>
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
02/26/2001-VIA-KT133-<A7V-E>
Note
Core version
Asus v6.0
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.719.0325.2009
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
3.3MB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.1MB
Filename
Name
Version
4.35V
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
973.7KB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.9MB
Filename
Name
Version
2.20a
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.3MB
Filename
Name
Version
2.10c
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
4.3MB
Filename

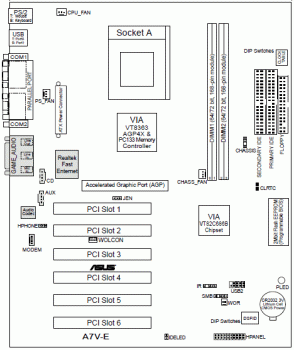

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2 (Carlos S. M.)
