ASUS A7N8X 1.x
Chipset
Socket
FSB speeds 200MHz266MHz333MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
3GB
RAM type DDR UDIMM
PSU connector
Also known as
- ASUS A7N8X Deluxe/Gold 1.x
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
SATA I
2x
Serial
6x
USB 2.0
Expansion slots1x
1.5V AGP Pro
5x
32-bit PCI
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
- Unstable or No Boot with Modern PSU
This motherboard may not P.O.S.T or may be unstable with a modern power supply with low amperage 5V Rail. Using a older high 5V amperage rail is recommended
Last updated 2026-02-16T14:28:50Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> SATA ctrl.
CPU family support
- AMD K7 - Athlon XP (Palomino)
- AMD K7 - Athlon XP (Thoroughbred)
- AMD K7 - Athlon XP (Barton)
- AMD K7 - Athlon (Thunderbird)
- AMD K7 - Mobile Athlon 4 (Corvette)
- AMD K7 - Mobile Athlon XP (Thoroughbred)
- AMD K7 - Athlon XP-M (Thoroughbred)
- AMD K7 - Athlon XP-M (Barton)
- AMD K7 - Duron (Morgan)
- AMD K7 - Athlon MP (Palomino)
- AMD K7 - Duron (Applebred)
- AMD K7 - Geode NX (Thoroughbred)
- AMD K7 - Sempron (Thoroughbred)
- AMD K7 - Athlon MP (Thoroughbred)
- AMD K7 - Sempron (Barton)
- AMD K7 - Sempron (Thorton)
- AMD K7 - Athlon XP (Thorton)
- AMD K7 - Athlon MP (Barton)
- AMD K7 - Duron (Spitfire)
- AMD K7 - Mobile Duron (Camaro)
- AMD K7 - Mobile Duron (Spitfire)
12 BIOS files available
Award - 12 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
63 drivers available
Name
Version
OS support
Size
Filename
Name
Version
45.23
OS support
Windows 2000
Windows XP/2k3
Size
18.9MB
Filename
Name
Version
45.23
OS support
Windows 9x
Size
7.6MB
Filename
Name
Version
44.03
OS support
Windows 2000
Windows XP/2k3
Size
18.4MB
Filename
Name
Version
43.45
OS support
Windows 9x
Size
7MB
Filename
Name
Version
43.45
OS support
Windows NT 4.0
Size
7.7MB
Filename
Name
Version
41.09
OS support
Windows 2000
Windows XP/2k3
Size
16.4MB
Filename
Name
Version
41.09
OS support
Windows 9x
Size
13.5MB
Filename
Name
Version
93.71
OS support
Windows 2000
Windows XP/2k3
Size
61.4MB
Filename
Name
Version
93.71
OS support
Windows XP/2k3
Size
48.2MB
Filename
Name
Version
77.72
OS support
Windows 2000
Windows XP/2k3
Size
28.7MB
Filename
Name
Version
77.72
OS support
Windows NT 4.0
Size
12.2MB
Filename
Name
Version
77.72
OS support
Windows 9x
Size
18.7MB
Filename
Name
Version
71.84
OS support
Windows 2000
Windows XP/2k3
Size
27.4MB
Filename
Name
Version
71.84
OS support
Windows 9x
Size
18.1MB
Filename
Name
Version
71.84
OS support
Windows NT 4.0
Size
19.6MB
Filename
Name
Version
66.77
OS support
Windows 2000
Windows XP/2k3
Size
17.4MB
Filename
Name
Version
61.82
OS support
Windows 2000
Windows XP/2k3
Size
20.7MB
Filename
Name
Version
61.77
OS support
Windows 2000
Windows XP/2k3
Size
12MB
Filename
Name
Version
56.72
OS support
Windows 2000
Windows XP/2k3
Size
10.2MB
Filename
Name
Version
56.64
OS support
Windows 9x
Size
14.3MB
Filename
Name
Version
56.64
OS support
Windows 2000
Windows XP/2k3
Size
10.7MB
Filename
Name
Version
53.04
OS support
Windows 9x
Size
7.9MB
Filename
Name
Version
52.16
OS support
Windows 2000
Windows XP/2k3
Size
8.6MB
Filename
Name
Version
52.14
OS support
Windows 2000
Windows XP/2k3
Size
10.2MB
Filename
Name
Version
56.64
OS support
Windows 2000
Windows XP/2k3
Size
10MB
Filename
Name
Version
1.6693 (66.93)
OS support
Windows 2000
Windows XP/2k3
Size
25.3MB
Filename
Name
Version
1.6177 (61.77)
OS support
Windows 2000
Windows XP/2k3
Size
20MB
Filename
Name
Version
1.5303 (53.03)
OS support
Windows 2000
Windows XP/2k3
Size
13MB
Filename
Name
Version
1.4523a (45.23)
OS support
Windows 2000
Windows XP/2k3
Size
19.5MB
Filename
Name
Version
1.4523 (45.23)
OS support
Windows 9x
Size
18.8MB
Filename
Name
Version
1.4403 (44.03)
OS support
Windows 9x
Size
18.4MB
Filename
Name
Version
1.4403 (44.03)
OS support
Windows 2000
Windows XP/2k3
Size
19MB
Filename
Name
Version
1.4345 (43.45)
OS support
Windows 9x
Size
13.9MB
Filename
Name
Version
1.4345 (43.45)
OS support
Windows 2000
Windows XP/2k3
Size
15.4MB
Filename
Name
Version
5.10
OS support
Windows 2000
Windows XP/2k3
Size
30.6MB
Filename
Name
Version
5.10
OS support
Windows 2000
Windows XP/2k3
Size
30.6MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
26.8KB
Filename
Name
Version
1.2.15.3
OS support
Windows 7
Windows Vista
Windows XP/2k3
Size
372KB
Filename
Name
Version
1.2.14.2
OS support
Windows Vista
Windows XP/2k3
Size
353KB
Filename
Name
Version
1.2.13.0
OS support
Windows Vista
Windows XP/2k3
Size
350.7KB
Filename
Name
Version
1.2.11.1
OS support
Windows Vista
Windows XP/2k3
Size
332.3KB
Filename
Name
Version
1.2.10.0
OS support
Windows XP/2k3
Size
344.1KB
Filename
Name
Version
1.1.0.5
OS support
Windows XP/2k3
Size
253.9KB
Filename
Name
Version
1.3.71.1
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Size
142.2KB
Filename
Name
Version
1.3.68.2
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Size
127.8KB
Filename
Name
Version
1.3.67.0
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
137.4KB
Filename
Name
Version
1.3.65.2
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
123.5KB
Filename
Name
Version
1.3.64.0
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
123.1KB
Filename
Name
Version
1.2.0.57
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
102.3KB
Filename
Name
Version
1.0.9.0
OS support
Windows Vista
Windows XP/2k3
Size
443.1KB
Filename
Name
Version
1.0.12.0
OS support
Windows Vista
Windows XP/2k3
Size
162.7KB
Filename
Name
Version
1.0.0.5
OS support
Windows XP/2k3
Size
429.2KB
Filename
Name
Version
1.0.65.1
OS support
Windows 7
Size
6.9MB
Filename
Name
Version
1.0.56.1
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
145.5KB
Filename
Name
Version
1.0.0.51
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
130KB
Filename
Name
Version
1.2.0.5
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.5MB
Filename
Name
Version
1.3.68.2
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Size
127.8KB
Filename
Name
Version
1.3.61.0
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Size
122.5KB
Filename
Name
Version
Empty
OS support
Windows XP/2k3
Size
26.8KB
Filename
2 board documents available
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

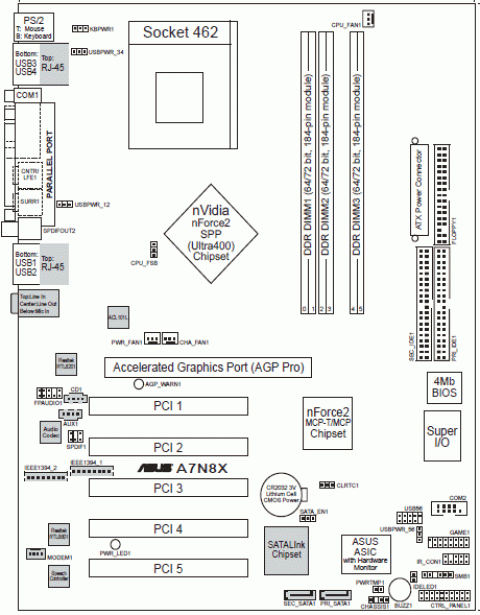

Image 1 of 3 (evasive)
