ASUS A7M266-M (OEM)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
no
tag Also known as
  • HP Bermuda 2.x
  • HP Bermuda 3.x
  • HP BoraBora 3.x
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
cardExpansion slots
3x
32-bit PCI
1x
Universal AGP
notes Notes

2.x Used in: HP Pavilion 7875, XT878 3.x Used in: HP Pavilion 7905 cfg-PC D7213G/D7213H, FR 7954, UK 7965, FR 7971, 700 cfg-PC D7212P/D7212Q/D7212S/D7212V/D7212W/D7213B/D7213C/D7213D, 710 cfg-PC D7214S/D7214T, 9905 cfg-PC, 900 cfg-PC D7212T/D7212U/D7212Y/D7213A/D7213E/D7213F, 901 cfg-PC D7214E/D7214F, AP 8996

2 more PCI slots can be added with an extender card

Last updated 2026-02-16T17:11:34Z
Board info score is 9.1/10
bios 2 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
adds Athlon XP support
Core version
4.0 Release 6.0
BIOS version
Logs
POST string
Note
Lost version, adds Athlon XP support
Core version
4.0 Release 6.0
BIOS version
3.33
Logs
POST string
Note
Bermuda 2.x
Core version
4.0 Release 6.0
BIOS version
Logs
drv 12 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.33
OS support
Windows 2000 Windows XP/2k3
Size
609.9KB
Filename
Name
Version
4.80
OS support
Windows 9x
Size
267.6KB
Filename
Name
Version
1.30
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.7MB
Filename
Name
Version
6.13.10
OS support
Windows XP/2k3
Size
1.6MB
Filename
Name
Version
Empty
OS support
Windows 2000 Windows 9x
Size
371.6KB
Filename
Name
Version
5.719.0325.2009
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Size
3.3MB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.9MB
Filename
Name
Version
2.20a
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.3MB
Filename
Name
Version
2.10c
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
4.3MB
Filename

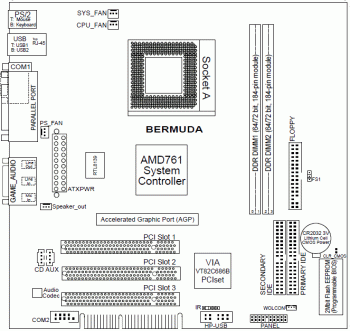

image1 Image 1 of 4 (ASUS)
image2 Image 2 of 4
image3 Image 3 of 4
image4 Image 4 of 4
