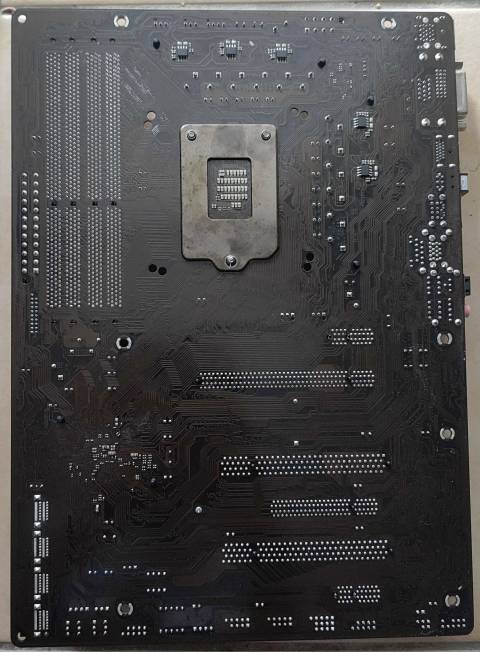

ASRock Z77 Extreme4
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB(DDR3-2800)
ramRAM type
DDR3 UDIMM
pwrPSU connector
12V EPS Connector (8-pin EPS) ATX 2.x (24-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
IrDA
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
4x
SATA III
1x
Serial
1x
Toslink
6x
USB 2.0
4x
USB 3.0
1x
VGA
1x
eSATA III
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8

Notes:

  • supports CrossFireX and SLI.
Last updated 2023-11-12T21:52:15Z
Board info score is 8.6/10
