ASRock N68C-GS FX
Chipset
Sockets
FSB speed Empty
Form factorMicroATX (max 244 x 244 mm)
Dimensions244mm x 208mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
8GB(DDR3-1600 / DDR2-1066)
RAM types DDR3 UDIMMDDR2 UDIMM
PSU connector
Also known as
- ASRock N68C-S FX (100M LAN)
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Notes
Limited AM3+ Support
Last updated 2025-04-07T16:00:24Z
Board info score is 9.2/10
Chips
-
Chipset part
-
Super I/O
5 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-131-0000010-00101111-103112-nVidia-AS626131
Note
Core version
080015
BIOS version
Logs
POST string
64-121-0000010-00101111-070412-nVidia-AS626121
Note
Core version
080015
BIOS version
Logs
POST string
64-113-0000010-00101111-062112-nVidia-AS626113
Note
Core version
080015
BIOS version
Logs
POST string
64-013-0000010-00101111-011812-nVidia-AS626013
Note
Core version
080015
BIOS version
Logs
POST string
64-101-0000010-00101111-050312-nVidia-AS626101
Note
Beta BIOS
Core version
080015
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs

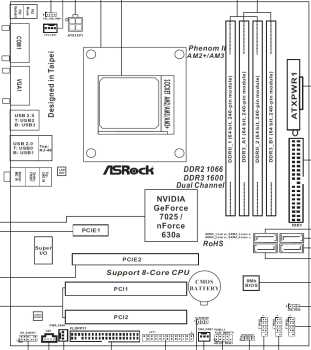

Image 1 of 4 (ASRock)
Image 2 of 4 (computerguy096)
Image 3 of 4 (ASRock)
Image 4 of 4 (ASRock)
