ASRock K8Upgrade-NF3
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)

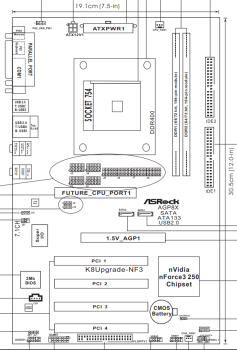

Dimensions305mm x 191mm
Cache
None/Integrated in the CPU
Max RAM size
2GB(Socket 754)4GB(Socket 939)8GB(Socket AM2)
RAM types DDR UDIMMDDR2 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
Expansion slots1x
1.5V AGP
4x
32-bit PCI
1x
ASRock Future CPU Port
Notes

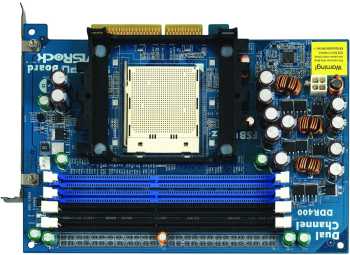

Supports Socket 939 and AM2 CPUs via the upgrade card
Last updated 2024-01-22T23:28:00Z
Board info score is 9.4/10
Chips
-
Chipset part
-
Audio
15 BIOS files available
AMI - 15 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-233-0000010-00101111-071607-nVidia
Note
Latest BIOS
Core version
080012
BIOS version
Logs
POST string
62-161-0000010-00101111-120105-nVidia
Note
Overclocking BETA BIOS
Core version
080012
BIOS version
Logs
7 drivers available
Name
Version
OS support
Size
Filename
Name
Version
1.008
OS support
Empty
Size
2.2MB
Filename
Name
Version
5.10
OS support
Windows 2000
Windows XP
Size
30.6MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows 9x
Windows XP
Size
17.9MB
Filename
Name
Version
1.08.5
OS support
Windows 2000
Windows 9x
Windows XP
Size
11.4MB
Filename
Name
Version
1.0
OS support
Windows 9x
Size
406.4KB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 5
Image 2 of 5 (ASRock)
Image 3 of 5 (ASRock)
Image 4 of 5 (ASRock)
Image 5 of 5
