ASRock Fatal1ty Z77 Professional
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
12V EPS Connector (8-pin EPS) ATX 2.x (24-pin ATX)

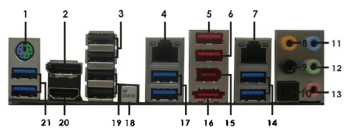

connI/O ports
1x
3.5mm Audio Combo
1x
DisplayPort
1x
IDE interface
2x
IEEE 1394
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
6x
SATA III
1x
Serial
1x
Toslink
10x
USB 2.0
8x
USB 3.0
1x
eSATA
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
3x
PCIe x16

Notes:

To Red USB 2.0 is used as Fatal1ty Mouse port

Last updated 2023-11-08T21:45:18Z
Board info score is 8.4/10
6 files available

Vendor: AMI [6 entries]

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Improve RAID card compatibility
Core version
UEFI
BIOS version
Logs
POST string
Note
Improve USB keyboard and mouse compatibility
Core version
UEFI
BIOS version
Logs
POST string
Note
Modify BIOS storage information
Core version
UEFI
BIOS version
Logs
POST string
Note
Update CPU Microcode
Core version
UEFI
BIOS version
Logs
POST string
Note
Improve DRAM compatibility
Core version
UEFI
BIOS version
Logs
POST string
Note
Change Internet Flash server
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc 3 board documents available
