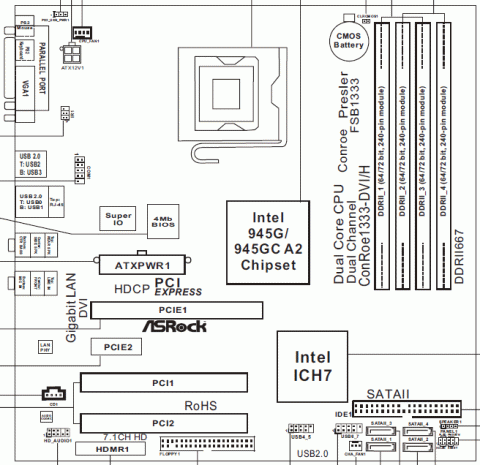

ASRock ConRoe1333-DVI/H R2.0
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
12V P4 Connector (4-pin P4) ATX 1.x (20-pin ATX)
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
ASRock HDMR
1x
PCIe x1
1x
PCIe x16

Notes:

Uses a Realtek RTL8111B Gigabit Ethernet controller.

1333 MT/s FSB is available as an overclocking option.

Despite the model name, DVI is not onboard. It's only available using the "DVI Graphics-HDCP" addon card, which plugs into the 16x PCIe slot.

Last updated 2023-03-22T21:52:07Z
Board info score is 9.3/10
9 files available

Vendor: AMI [9 entries]

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-182-0000010-00101111-102207-INTEL-ASR21182
Note
Core version
080012
BIOS version
Logs
POST string
63-173-0000010-00101111-082707-INTEL-ASR21173
Note
Core version
080012
BIOS version
Logs
POST string
63-161-0000010-00101111-080707-INTEL-ASR21161
Note
Core version
080012
BIOS version
Logs
POST string
63-154-0000010-00101111-073107-INTEL-ASR21154
Note
Core version
080012
BIOS version
Logs
POST string
63-144-0000010-00101111-071707-INTEL-ASR21144
Note
Core version
080012
BIOS version
Logs
POST string
63-138-0000010-00101111-062507-INTEL-ASR21138
Note
Core version
080012
BIOS version
Logs
POST string
63-122-0000010-00101111-052807-INTEL-ASR21122
Note
Core version
080012
BIOS version
Logs
POST string
63-191-0000010-00101111-103107-INTEL-ASR21191
Note
Core version
080012
BIOS version
Logs
POST string
63-201-0000010-00101111-011808-INTEL-ASR21201
Note
Core version
080012
BIOS version
Logs
drv 1 known good driver available
Name
Version
OS support
Size
Filename
Name
Version
9.2.0.1030
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
OS support
Size
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
2.4MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
Name
Version
14.25.50
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
14.32.4
OS support
Windows 2000 Windows XP
Size
47.9MB
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
File
Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
