Arcom SBC-GX1
Chipset
Socket
FSB speed 33MHz
Form factorEBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
Dimensions203mm x 146mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
256MB288MB(with onboards DRAM)
RAM type 144-pin SDR SO-DIMM
PSU connector
Empty
I/O ports1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
Serial
4x
USB 1.x
Expansion slots1x
32-bit PCI
1x
PC/104
Notes
SBC-GX1-M0-F0 (Geode GX1 300Mhz, no DRAM, no Flash)
SBC-GX1-M32-F0 (Geode GX1 300Mhz, 32MB DRAM, no Flash)
SBC-GX1-M0-F16 (Geode GX1 300Mhz, no DRAM, 16MB Flash)
SBC-GX1-M32-F16 (Geode GX1 300Mhz, 32MB DRAM, 16MB Flash)
Uses EBX power supply connector
Has PC/104 expansion interface
Last updated 2025-01-04T15:56:14Z
Board info score is 7.6/10
Chips
-
Chipset part
-
Audio
-
Super I/O
CPU family support
0 BIOS files available
9 drivers available
Name
Version
OS support
Size
Filename
Name
Version
4.10.01.1305
OS support
Windows 3.1x
Windows NT 4.0
Size
363.2KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-09
File
Logs

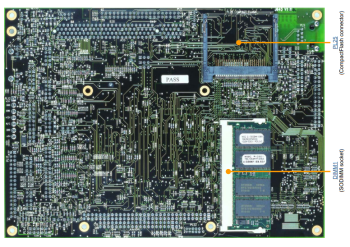

Image 1 of 3

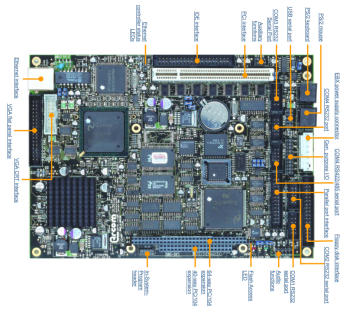

Image 2 of 3
Image 3 of 3
