AOpen AP43
Chipset
Socket
FSB speeds 20MHz25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions250mm x 220mm
Cache
128KB256KB512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Notes
AP4/AP41/AP43 share the same bios
FSB misprint: manual/PCB lists 40MHz at JP25 1-2 + JP26 2-3 however that is actually 50MHz in testing. The correct 40MHz option is JP25 2-3 + JP26 1-2
Last updated 2024-05-09T15:51:07Z
Board info score is 9.3/10
Chips
-
Chipset part
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-PG0A-001770-00101111-101094-SIS496AB-H
Note
For Super IO SMC665GT only
Core version
101094
BIOS version
Logs
POST string
41-PG0A-001770-00101111-101094-SIS496AB-H
Note
Core version
101094
BIOS version
Logs
POST string
41-PG0A-001770-00101111-101094-SIS496AB-H
Note
Core version
101094
BIOS version
Logs
3 drivers available
Name
Version
OS support
Size
Filename
Name
Version
BC318
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Size
Empty
Filename
Name
Version
BC318
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Size
Empty
Filename
Name
Version
BC310
OS support
MS-DOS
NetWare Server 3
OS/2 1.x
Windows 3.0
Windows NT 3.1
Size
97.9KB
Filename
2 board documents available
Release date
File
Logs
Family
Release date
File
Logs

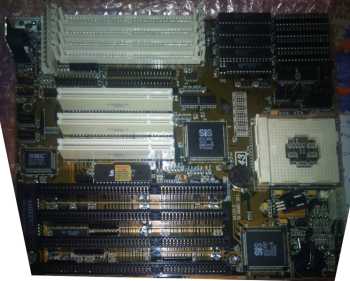

Image 1 of 4 (Microhouse)
Image 2 of 4 (Stathis Simeonidis)
Image 3 of 4 (AT House)
Image 4 of 4 (DOS Days)
