ALi AP715DS3 Ver 2.0 (ALADDiN-P4 reference board)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305 mm x 235 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
no
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
Universal AGP
notes Notes

Iwill P4DA is based on this board so its BIOS is probably compatible although it has not been tested.

Last updated 2024-01-31T19:22:02Z
Board info score is 9.2/10
bios 0 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
reference board bios
Core version
6.00PG
BIOS version
v.ap01086t
Logs
POST string
11/12/2001
Note
reference board bios
Core version
6.00PG
BIOS version
AP12076t
Logs
drv 17 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.35
OS support
Windows 2000
Size
26.2KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Size
3.2MB
Filename
Name
Version
5.12.01.5126
OS support
Windows 2000 Windows 9x
Size
3.2MB
Filename
Name
Version
5.12.01.5124
OS support
Windows 2000 Windows 9x Windows XP
Size
3.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Size
3.1MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 2000
Size
3.1MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP
Size
3.1MB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Size
1.8MB
Filename
Name
Version
4.05.1110 (VxD) / 1.53 (NT4)
OS support
Windows 9x Windows NT 4.0
Size
2.8MB
Filename
Name
Version
4.05.1109 (VxD) / 5.12.01.5170 (WDM) / 1.5 (NT4)
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
17.1MB
Filename
Name
Version
4.05.1109
OS support
Windows 9x Windows NT 4.0
Size
16.2MB
Filename
Name
Version
4.03
OS support
Linux
Size
210.2KB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Size
156KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Size
62.2KB
Filename
Name
Version
2.20
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
10.1MB
Filename
Name
Version
1.98
OS support
MS-DOS
Size
64.9KB
Filename
Name
Version
0.14.7
OS support
Linux
Size
27.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

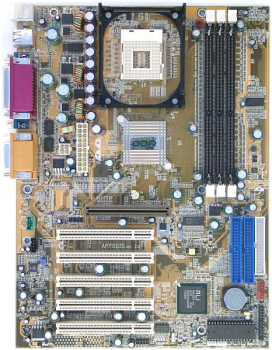

image1 Image 1 of 6 (evasive)

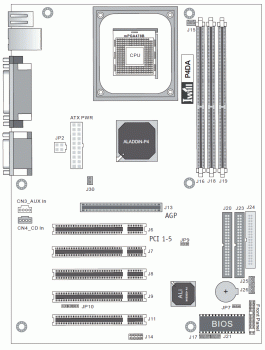

image2 Image 2 of 6

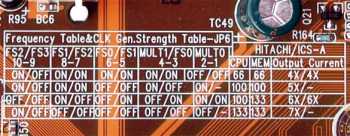

image3 Image 3 of 6 (iXBT)
image4 Image 4 of 6
image5 Image 5 of 6
image6 Image 6 of 6 (evasive)
