Acer J3
Logs
chipChipset
cpuSockets
Socket 4 (PGA273) Socket 1 (PGA169)
speedFSB speeds
20MHz25MHz33MHz50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
64KB128KB256KB1MB
ramMax RAM size
256MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
PS/2 keyboard
1x
PS/2 mouse
cardExpansion slots
8x
32-bit EISA
2x
32-bit VLB
notes Notes

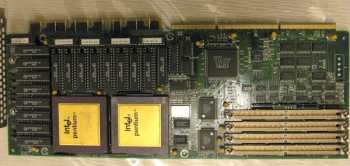

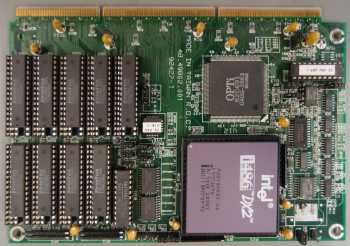

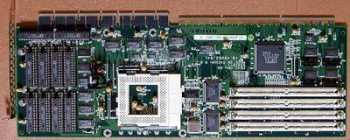

CPU is mounted on separate card.

The 486 card has a 82C691 chip, the Pentium has 82C693 and 82C697 chips.

Last updated 2024-10-17T14:39:55Z
Board info score is 9.1/10
chip Chips
cpufam CPU family support
bios 2 BIOS files available

vendor Acer - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
EISA 486SX/487SX/486DX/486DX2/P24T
Note
Core version
V1.2
BIOS version
Logs
POST string
EISA Pentium
Note
Core version
V1.2
BIOS version
Logs
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
Family
Release date
1994-11
File
Logs
Family
Release date
1996-03-04
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Anonymous Coward)
image3 Image 3 of 5 (AT House)
image4 Image 4 of 5 (Anonymous Coward)
image5 Image 5 of 5
