ABit AB-KT7-RAID
Chipset
Socket
FSB speed 200 MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
1.5 GB
RAM type SDR UDIMM
PSU connector
I/O ports1x
Floppy interface
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
Expansion slots1x
16-bit ISA
6x
32-bit PCI
1x
Universal AGP
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
Last updated 2026-02-21T05:20:08Z
Board info score is 9.8/10
Chips
14 BIOS files available
Award - 14 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
17 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.00
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Size
25.2KB
Filename
Name
Version
0.95
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Size
940.3KB
Filename
Name
Version
1.11.0512
Arch
x86
OS support
Windows 9x
Size
37.6KB
Filename
Name
Version
2.352.7.126
Arch
x86
, x64
OS support
Windows Vista
Size
79.4KB
Filename
Name
Version
2.344
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
137.6KB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
227.7KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.9MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.9MB
Filename
Name
Version
1.08
Arch
x86
OS support
Windows 2000
Windows 9x
Size
553.6KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
MS-DOS
OS/2 Warp 4.x
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
4.3MB
Filename
Version
Arch
x86
OS support
MS-DOS
OS/2 Warp 4.x
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
4.3MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.1MB
Filename
Version
Arch
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
973.7KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
250.8KB
Filename
Version
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
184.8KB
Filename
Version
Arch
OS support
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

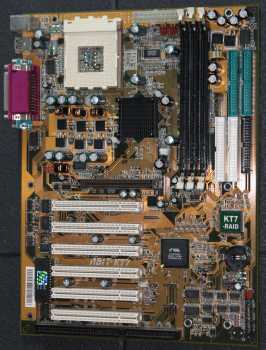

Image 1 of 5 (ABit)
Image 2 of 5 (VooDooMan)
Image 3 of 5 (andysarcade)
Image 4 of 5 (VooDooMan)
Image 5 of 5 (ABit)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
