PURE DATA, LTD. SATISFAXTION MODEM/200
Logs
typeType
Modem
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EJMPCCB6201A
ramRAM type
DRAM
ramRAM size
512KB
chip Chips and specs
-> Miscellaneous
LSI L1A7999
-> Modem
Rockwell RC9623DP (Data/Fax Modem Data Pump)
MTL
Chip Set Intel
Data Bus 16 bit ISA
Card Type Modem(asynchronous)
Fax Class Class I & II
Maximum Fax Rate 9600bps
Maximum Data Rate 2400bps
Fax Modulation Protocol Unidentified
Data Modulation Protocol Bell 103A/212AITU-T V.21, V.22, V.22bis
Error Correction/Compression MNP5, V.42, V.42bis
tag Also known as
portintI/O ports
1x
  • 8-pin Mini-DIN
2x
  • RJ11
powerPower connectors
Empty
notes Notes

Card has no built-in firmware of its own - doesn't present as a modem with an AT data set; relies on DOS driver to initialize the modem and load the modem's firmware into onboard RAM. Modem seems to be capable of buffering and automatically sending faxes without host PC software interaction.

Has a port to connect a Logitech ScanMan 256 and capture paper scans.

Last updated 2026-01-14T03:26:54Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Size
Filename
Name
Version
Empty
OS support
Windows 3.0 Windows 3.1x
Size
1.4MB
Filename
Name
Version
Empty
OS support
MS-DOS Windows 3.0 Windows 3.1x
Size
778.5KB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
1.8MB
Filename
doc 6 card documents available
Release date
File
Logs
Release date
1995-11
File
Logs
Release date
1999
File
Logs
Release date
1994-11
File
Logs
Release date
1994-11
File
Logs
Release date
1995
File
Logs
Release date
1994-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1991-06
File
Logs

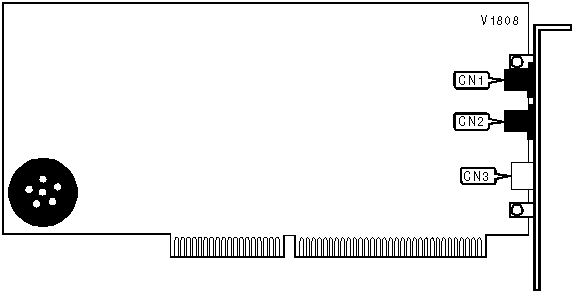

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (FalconFour)
image3 Image 3 of 4 (FalconFour)
image4 Image 4 of 4 (FalconFour)
