NewCom 56KIFXSP (A)
Logs
Interface
Signaling
Slot height
PCI IDEmpty
Chips and specs
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 16-bit ISA |
| Card Type | Modem (asynchronous) |
| Fax Class | Class I & II |
| I/O Options | Microphone, speaker/line out |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Modem Rate | 56Kbps |
| Fax Modulation Protocol | V.17, V.29, V.27ter, V.21CH2 |
| Data Modulation Protocol | Bell 103A/212A V.34, V.32bis, V.32, V.23, V.22bis, V.22, V.21, K56flex, V.90 |
| Error Correction/Compression | V.42, MNP10, V.42bis, MNP5 |
I/O portsEmpty
Power connectorsEmpty
Last updated 2024-03-23T19:36:26Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

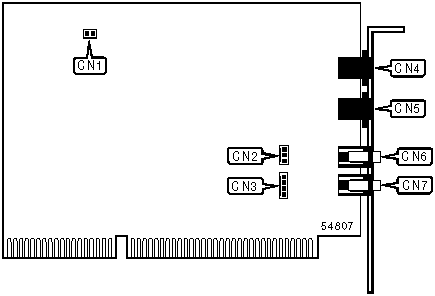

Image 1 of 1 (Microhouse)
