NewCom 336IFXSP(C)
Logs
typeType
Modem
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Miscellaneous
Cirrus Logic CL-MD4450C-SC-B
-> Modem
Cirrus Logic CL-MD3450D-SC-C
MTL
Chipset Unidentified
Data Bus 16-bit ISA
Card Size Full height, half length
Card Type Modem (asynchronous)
Fax Class Class I
I/O Options Audio line out, microphone in, speaker out, voice, speakerphone
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Data Modulation Bell 103A, 212AITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34
Maximum Fax Rate 14.4Kbps
Maximum Data Rate 33.6Kbps
Error Correction/Compression MNP5, V.42, V.42bis
portintI/O ports
1x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • RJ11
powerPower connectors
Empty
Last updated 2025-02-02T17:34:29Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
Note
File
Logs
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

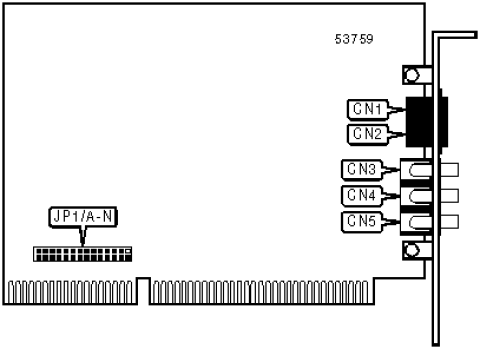

image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (Douglar)
image3 Image 3 of 3 (Douglar)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
