Miro miroCONNECT 34 WAVE
Logs
typeType
Sound Modem IDE controller
interfaceInterface
connectorSlot connector
16-bit ISA
signalSlot signals
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
Empty
dimDimensions
119 mm (width) x 285mm (length)
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • RJ11
powerPower connectors
Empty
Last updated 2025-05-13T19:39:53Z
chip Chips
chip Specs

Additional specifications:

MTL
Chip Set Mwave MDSP-2780
Data Bus 16-bit ISA
Card Type Fax, Modem (asynchronous), Sound, Voice
Fax Class Class I & II
I/O Options Audio in, Audio out, CD-ROM audio (2), CD-ROM interface, Game/MIDI port, Microphone, Voice
Maximum DRAM N/A
Maximum Fax Rate 14.4Kbps
Maximum Modem Rate 28.8Kbps
Fax Modulation Protocol ITU-T V.17, V.27ter, V.29
Data Modulation Protocol Bell 103/212AITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34
Error Correction/Compression MNP5, V.42bis
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

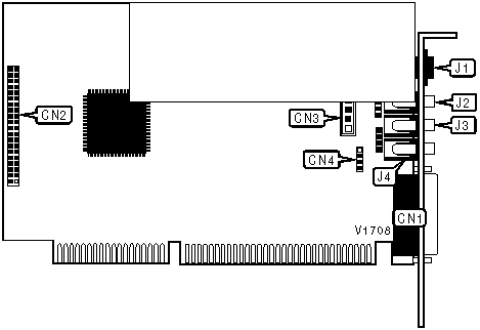

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (csimir)
image3 Image 3 of 4 (csimir)
image4 Image 4 of 4 (csimir)
