Miro miroCONNECT 34
Logs
typeType
Sound Modem IDE controller FM Radio
interfaceInterface
connectorSlot connector
16-bit ISA
signalSlot signals
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
Empty
dimDimensions
Empty
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • RJ11
powerPower connectors
Empty
Last updated 2024-09-20T09:15:19Z
chip Chips
chip Specs

Additional specifications:

MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Modem/Communication Adapter card
Fax Class Class I & II
I/O Options: Analog telephone port (RJ-11), microphone in, audio in, audio out, game/MIDI port, TV/audio in, IDE interface, miromedia radio connector
Maximum Fax Rate 14.4Kbps
Maximum Modem Rate 33.6Kbps
Fax Modulation Protocol ITU-T V.17, V.27ter, V.29
Data Modulation Protocol Bell 103/212ITU-T V.22, V.22bis, V.32, V.32bis, V.34
Error Correction/Compression MNP5, V.42, V.42bis
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

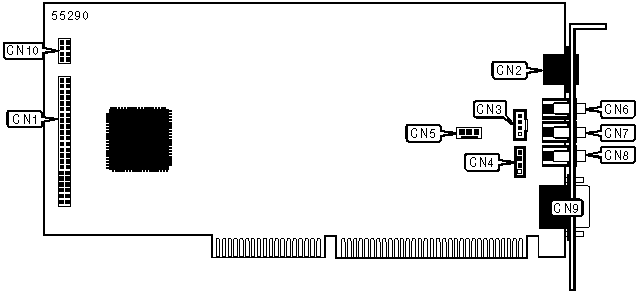

image1 Image 1 of 1 (Microhouse)
