DPT PM3755U2B
Logs
typeType
RAID controller
interfaceInterface
connectorSlot connector
Universal 64-bit PCI
signalSlot signals
32-bit PCI 64-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
Empty
dimDimensions
Empty
portintI/O ports
Empty
powerPower connectors
Empty
Last updated 2025-04-23T17:20:27Z
chip Chips
chip Specs

Additional specifications:

MTL
Chip Set Unidentified
Data Bus 64-bit PCI
Card Size Full-length
Card Type Hard drive controller
I/O Options SCSI connectors (2), expansion module connectors (2)
Hard Drives supported Up to 15 Ultra2/LVD Wide SCSI devicesUp to 45 Wide SCSI-2 or Ultra-wide SCSI devices with expansion board upgrades
Maximum Onboard Memory 256MB DRAM
Floppy drives supported None
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

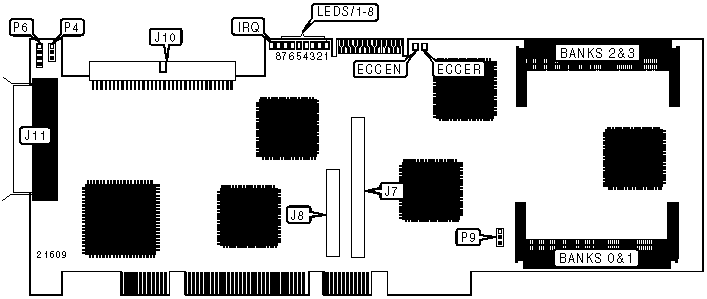

image1 Image 1 of 5 (Microhouse)

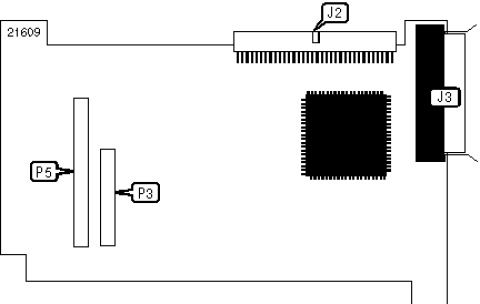

image2 Image 2 of 5 (Microhouse)

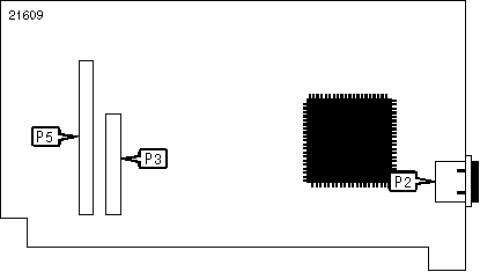

image3 Image 3 of 5 (Microhouse)

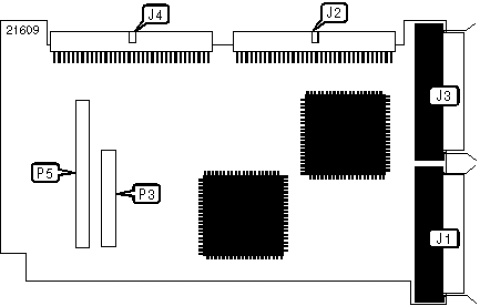

image4 Image 4 of 5 (Microhouse)

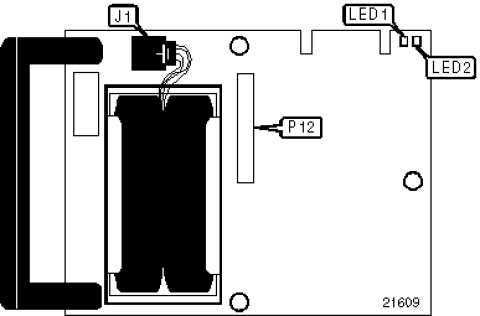

image5 Image 5 of 5 (Microhouse)
