DPT PM3755F
Logs
typeType
Fibre Channel
interfaceInterface
signalSignaling
32-bit PCI 64-bit PCI
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
MTL
Chip Set Unidentified
Data Bus 64-bit PCI
Card Size Full-length
Card Type Hard drive controller
I/O Options HSSDC FC-AL connector, expansion module connectors (2)
Hard Drives supported Up to 126 Fibre Channel Arbitrated Loop (FC-AL) devicesUp to 252 Fibre Channel Arbitrated Loop (FC-AL) devices with expansion board upgrades
Maximum Onboard Memory 256MB DRAM
Floppy drives supported None
portintI/O ports
Empty
powerPower connectors
Empty
Last updated 2025-04-23T17:20:03Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

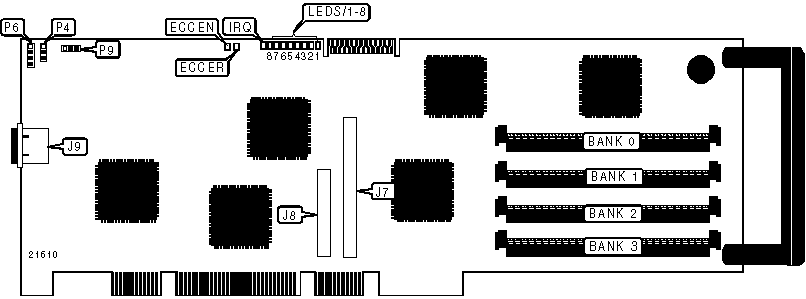

image1 Image 1 of 3 (Microhouse)

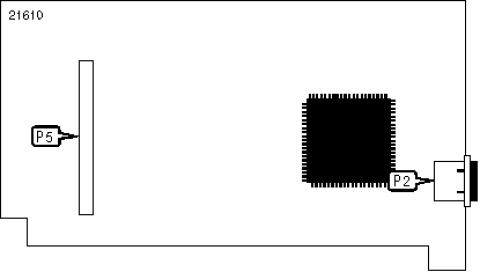

image2 Image 2 of 3 (Microhouse)

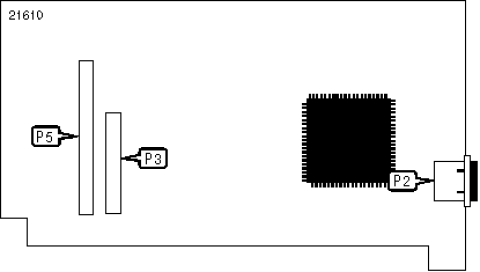

image3 Image 3 of 3 (Microhouse)
