DataExpert MED3931
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
OPTi 82C931 (OPTIFM) ST / Inmos TEA2025 (Audio Amplifier)
MTL
Chip Set Opti
Data Bus 16-bit ISA
Card Size Half-length, half-height card
Card Type Sound card
I/O Options Speaker out (2), line in (2), microphone in (2), game port,Audio in - CD-ROM (2), unidentified connector, wavetable connector
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • DA-15
powerPower connectors
Empty
Last updated 2025-03-25T21:42:32Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-08-01
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs

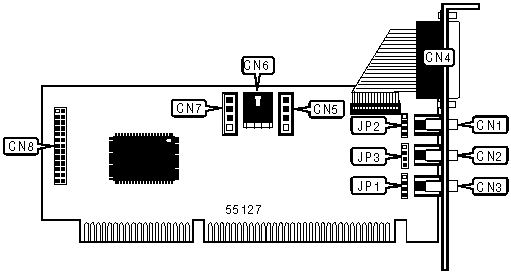

image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (Petros Savvas)
image3 Image 3 of 6 (Petros Savvas)
image4 Image 4 of 6 (davidg)
image5 Image 5 of 6 (davidg)
image6 Image 6 of 6 (davidg)
