CARDINAL TECHNOLOGIES MVPV34ISP
Logs
Interface
Slot connector
Slot signals
Slot height
PCI IDEmpty
FCC IDEmpty
DimensionsEmpty
I/O portsEmpty
Power connectorsEmpty
Last updated 2024-03-23T19:36:25Z
Chips
Specs
Additional specifications:
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 16-bit ISA |
| Card Type | Modem/Fax card |
| Fax Class | Class I |
| I/O Options | Line in, line out, microphone jack, speaker jack |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Modem Rate | 33.6Kbps |
| Fax Modulation Protocol | ITU-T V.17, V.27ter, V.29, V.21 |
| Data Modulation Protocol | Bell 103/212A ITU-T V34, V.32bis, V.32, V.22bis, V.22, V.21 |
| Error Correction/Compression | MNP5, V.42, V.42bis |
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

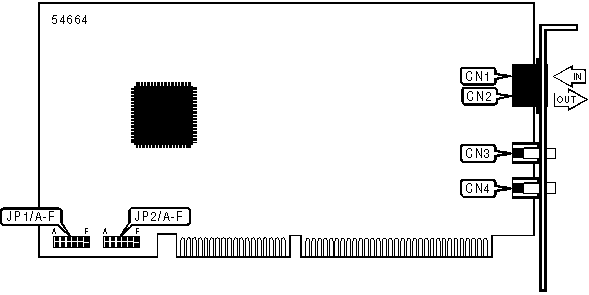

Image 1 of 1 (Microhouse)
