Gainward / CARDEX [VGA] S3D VIRGE GX2 (PCI)
Logs
typeType
Video
interfaceInterface
connectorSlot connector
5V 32-bit PCI
signalSlot signals
32-bit PCI
dimSlot height
1
datePCI ID
8A10
fccFCC ID
Empty
ramRAM type
SGRAM
ramRAM size
4MB
dimDimensions
Empty
portintI/O ports
1x
  • RCA Jack
1x
  • 4-pin Mini-DIN
1x
  • 2x13 2.54mm pin header
1x
  • 2x3 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2024-12-04T20:35:42Z
chip Chips
chip Specs

Additional specifications:

MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set S3
Maximum Video Memory 4MB SGRAM
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Size
Filename
Name
Version
3.22.08 (Windows 95) / 1.06.20 (Windows 3.1)
OS support
Windows 3.1x Windows 9x
Size
1.3MB
Filename
Name
Version
4.03.00.2112-3.22.08
OS support
Windows 9x
Size
282.8KB
Filename
Name
Version
4.10.01.2122-3.42.02
OS support
Windows 9x
Size
266.7KB
Filename
Name
Version
4.10.01.2122-3.42.02
OS support
Windows 9x
Size
266.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

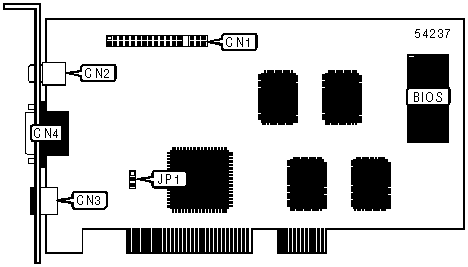

image1 Image 1 of 1 (Microhouse)
