BOCA RESEARCH, INC. SOUND EXPRESSION (SE14SRS)
Logs
Interface
Signaling
Slot height
PCI IDEmpty
Chips and specs
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 16-bit ISA |
| Card Type | Sound/Modem card |
| Fax Class | Class I & II |
| I/O Options | Game/MIDI port, CD-ROM interface - IDE, Audio in - CD-ROM (3), speaker, line out, line in, microphone in, telephone jack |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Modem Rate | 14.4Kbps |
| Maximum Onboard Memory | Unidentified |
| Fax Modulation Protocol | ITU-T V.17, V.21CH2, V.27ter, V.29 |
| Data Modulation Protocol | Bell 103A/212A ITU-T V.22, V.22bis, V.32, V.32bis |
| Error Correction/Compression | MNP5, V.42, V.42bis |
I/O portsEmpty
Power connectorsEmpty
Last updated 2024-03-23T19:36:25Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

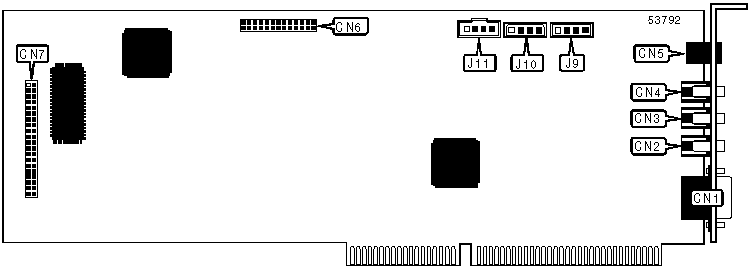

Image 1 of 1 (Microhouse)
