BOCA RESEARCH, INC. BOCA WINSTORM 56K PCI MODEM
Logs
typeType
Modem
interfaceInterface
connectorSlot connector
5V 32-bit PCI
signalSlot signals
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
Empty
dimDimensions
Empty
portintI/O ports
Empty
powerPower connectors
Empty
Last updated 2025-02-26T22:17:08Z
chip Chips
chip Specs

Additional specifications:

MTL
Chip Set Unidentified
Data Bus 32-bit PCI
Card Size Half-length, half-height card
Card Type Modem, Fax
Fax Class Class I & II
I/O Options microphone, speaker out
Maximum Fax Rate 14.4Kbps
Maximum Modem Rate 56Kbps
Fax Modulation Protocol ITU-T V.17, V.21CH2, V.27ter, V.29
Data Modulation Protocol Bell 103A/212AITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34, V.90, K56 flex
Error Correction/Compression MNP2-4,MNP5, V.42, V.42bis
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

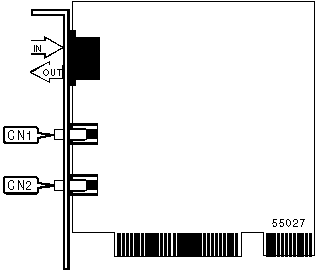

image1 Image 1 of 1 (Microhouse)
