ATi [VGA] ALL-IN-WONDER
Logs
typeType
Video Video capture TV tuner
interfaceInterface
connectorSlot connector
5V 32-bit PCI
signalSlot signals
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
Empty
dimDimensions
Empty
portintI/O ports
1x
  • F-type female coaxial
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
1x
  • 8-pin Mini-DIN
1x
  • 10-pin Mini-DIN
powerPower connectors
Empty
Last updated 2024-10-26T06:05:37Z
chip Chips
chip Specs

Additional specifications:

MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set ATI 3D Rage II
Maximum Video Memory 4MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported Unidentified
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

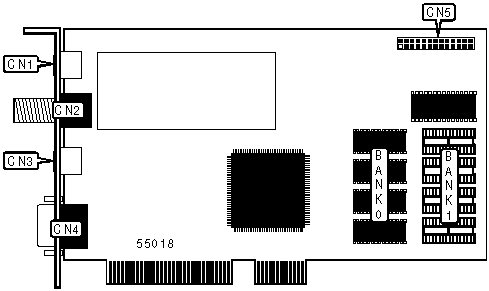

image1 Image 1 of 1 (Microhouse)
