AMI MEDIA-TEL
Logs
typeType
Modem
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Fax, Modem (asynchronous), Sound card
Fax Class Class I
I/O Options Audio line in, audio line out, CD audio interface (4), CD-ROM interface (3), game/MIDI port, Telephone answering machine, Voice-mail
Maximum Fax Rate 14.4Kbps
Maximum Modem Rate 19.2Kbps
Maximum Onboard Memory Unidentified
Fax Modulation Protocol ITU-T V.17, V.21CH2, V.27ter, V.29
Data Modulation Protocol Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.32ter
Error Correction/Compression MNP5, V.42, V.42bis
portintI/O ports
Empty
powerPower connectors
Empty
Last updated 2024-03-23T19:36:25Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

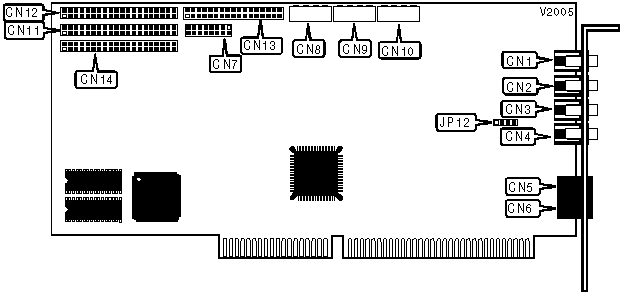

image1 Image 1 of 1 (Microhouse)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
