3Com US ROBOTICS VOICE 28.8 FAXMODEM INTERNAL
Logs
Interface
Signaling
Slot height
PCI IDEmpty
Chips and specs
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 8-bit ISA |
| Card Size | Three-quarter length |
| Card Type | Modem, Fax |
| Fax Class | Class I & II |
| I/O Options | Serial ports (2 RJ-11) |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Modem Rate | 28.8Kbps |
| Fax Modulation Protocol | Unidentified |
| Data Modulation Protocol | Bell 103A/212A V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 |
| Error Correction/Compression | MNP 2-4, MNP5, V.42, V.42bis |
I/O portsEmpty
Power connectorsEmpty
Last updated 2024-03-23T19:36:24Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

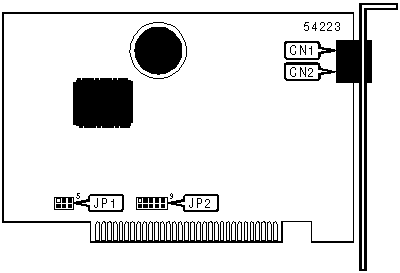

Image 1 of 1 (Microhouse)
