Zhaoxin ZX-200
Logs See all boards with this chip
dateType
Chipset part
datePCI Vendor ID
1D17
datePCI Device ID
0711 0712 0713 0714 0715 071F 0720 0721 0722 3038 3104 9002 9100 9101 9180 9203 0710
tag Also known as
No additional family specs
doc No chip documents available
drv No drivers available
notes Notes

ZX-200 Chipset Specifications

Specification Details
TDP 6 W
PCIe 2.0 9 lanes
PCIe 3.0 -
SATA 4
USB 2.0 6
USB 3.1 Gen 1 3
USB 3.1 Gen 2 2
Network 10/100M/1 Gbps
Process 40 nm
Package FCBGA (21mm x 21mm)
Chipset Interface PCIe 3.0 x4
Last updated 2019-04-30T00:00:00Z

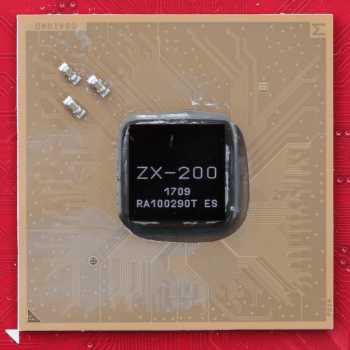

image1 Image 1 of 2 (Rigo "0xCats" Reddig)

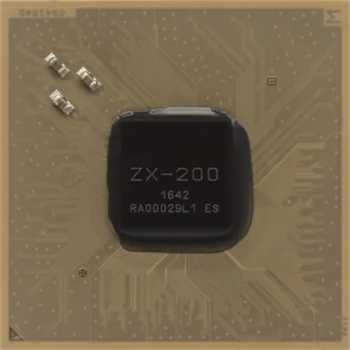

image2 Image 2 of 2
